Description

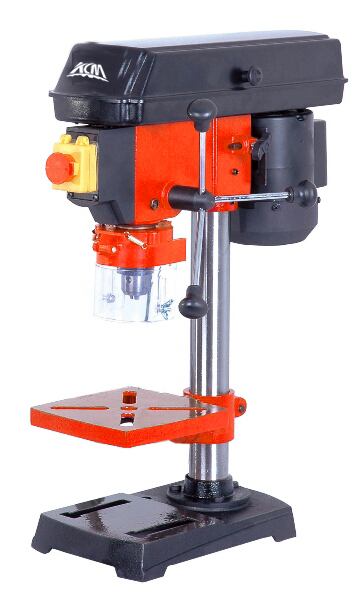

ATZ1301B/1301BN  8-inch(13mm)Bench Top Drill Press

Features:

1/2’(13MM)Max.Chuck Capacity

8-3/16(208mm)Swing

5 Spindle Speeds

0-45°Table Tilt L&R

With Chuck Guard as CE Requirement

Specification:

Motor(w)   180/250

Swing(mm)   208

Max. Drilling capacity(mm)  13

Chuck capacity(mm)            13

Taper                                      JT33/B16

Spindle travel(mm)                50

No. of speed                            5

Speed range 50Hz(rpm)         500-2500

          60Hz(rpm)       620-3100

Overall height(mm)                580

Measurement(mm)                   456x219x350

N.W/G.W.(kg)                         15/17

Qty/20’ container                    820
